Power Monitoring Unit with Hall Sensor Inputs

MS-SU-H-C-5

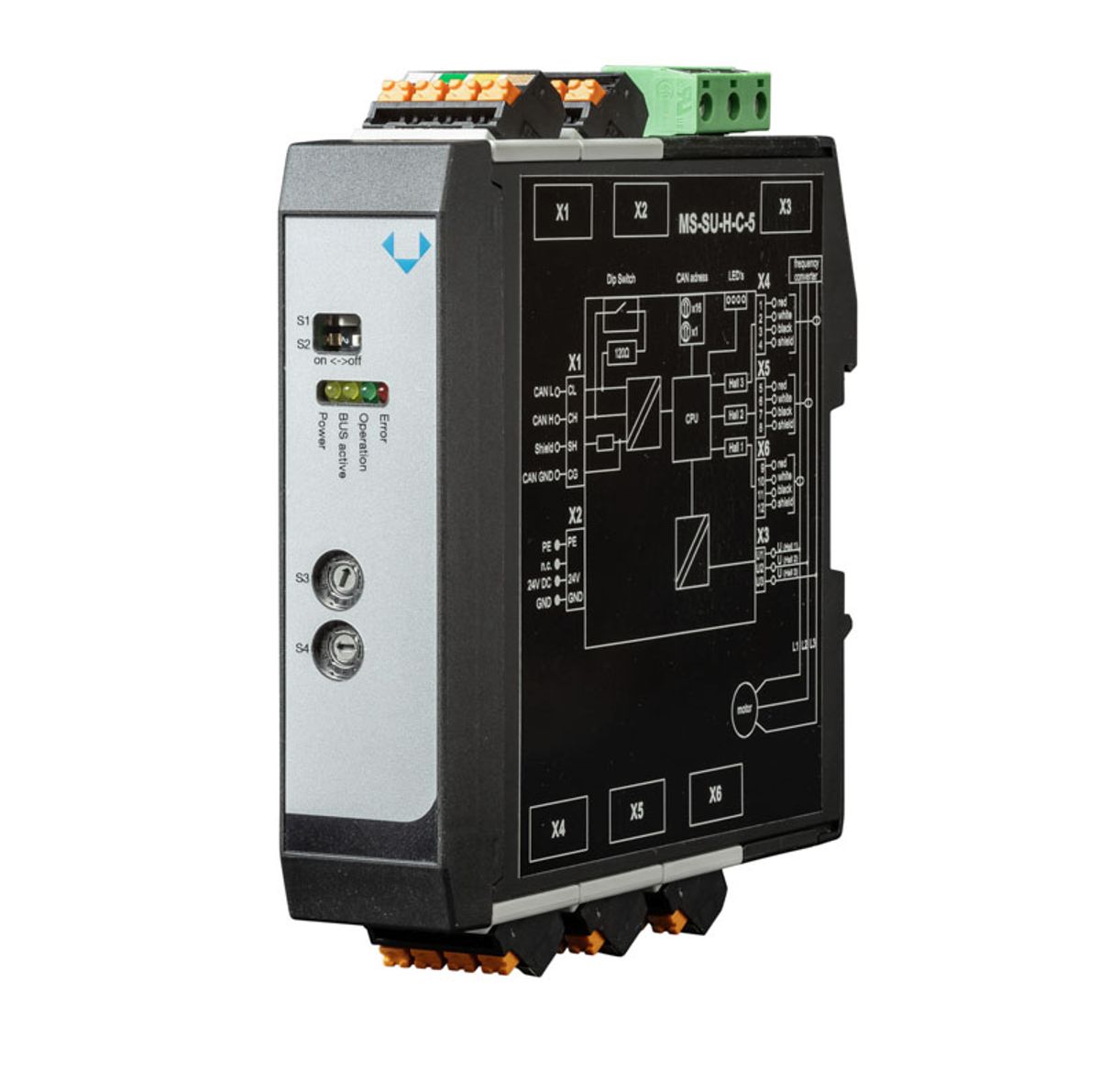

Image of a power measurement unit in black for continuous condition monitoring

Description

The MS-SU-H-C-5 module is a high-performance power monitoring measurement unit that generates continuous data curves for advanced condition monitoring via a Gateway or digital processing unit (DPU).

The module captures power values in the microsecond (μs) range and pre-processes the data based on user-defined parameters. These processed values are then transmitted to the Gateway or DPU at millisecond (ms) intervals.

With its high sampling rate, the MS-SU-H-C-5 is ideally suited for tool monitoring applications on machines driven by frequency inverters or conventional motors:

  • Less intervention required in the machine's wiring compared to the Shunt Module
  • Supports power levels up to 100 kW
  • Supports currents up to 500 A

Specifications

Supply Voltage

24 VDC ±20 % PELV

Operating temperature

0 °C to +50 °C

Storage temperature

-20 °C to +70 °C

Protection Class

IP20 (according to IEC 60529)

Approvals

CE, UL, RoHS, REACH

Dimensions

25 x 110 x 116.7 mm

Features

  • Power measurements up to 100 kW
  • 3 x Hall sensor inputs for connecting various Hall sensors
  • 3 x Voltage inputs, rated up to 400V
  • CAN interface with switchable 120 Ohm termination resistor
